A new feature has been added to Business Central 28, the ability to handle SFTP servers natively in Business Central AL code. This is a huge new feature for those of us that need to communicate with external systems via SFTP. Asynchronous integrations via FTP are still very common, which makes this a very powerful feature.
This is all made possible through a new code unit call “SFTP Client”, which has the id of 9762.
We need a place to test; here is a list of Free Public SFTP Servers – SFTP.net

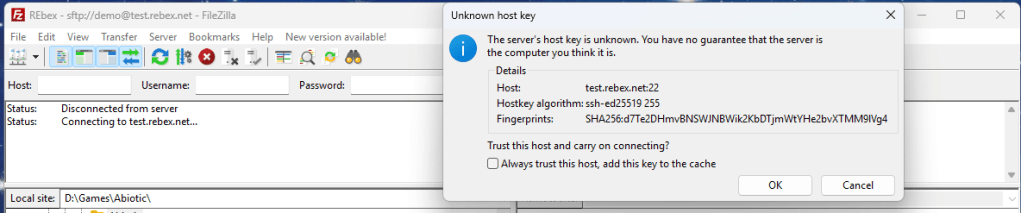

I’m going to use FileZilla to check if the server is running and capture the fingerprint. That will be critical later.
We need to store FTP access information somewhere safe. For this example, I’m going to use Isolated Storage.
Here is a refresher on handling secure data in Business Central.
ARDSFTPServerSettings.CodeUnit.AL
namespace AardvarkLabs.FileParsingExamples;
codeunit 50000 ARD_SFTPServerSettings
{
Access = Internal;
var
FTPServerUserNameLbl: Label 'FTPServerUserNAme';
FTPServerPasswordLbl: Label 'FTPServerPassword';
FTPServerHostLbl: Label 'FTPServerHost';
FTPServerPortLbl: Label 'FTPServerPort';
FTPServerFingerPrintLbl: Label 'FTPServerFingerPrint';
procedure GetServerUserName():Text
var
value: Text;
begin
IsolatedStorage.get(FTPServerUserNameLbl, value);
exit(value);
end;
procedure SetServerUserName(value: Text)
begin
IsolatedStorage.set(FTPServerUserNameLbl, value);
end;
procedure GetServerPassword():SecretText
var
value: SecretText;
begin
if NOT IsolatedStorage.get(FTPServerPasswordLbl, value) then value := SecretStrSubstNo('');
exit(value);
end;
procedure SetServerPassword(value: SecretText)
begin
IsolatedStorage.set(FTPServerPasswordLbl, value);
end;
procedure GetServerHost():Text
var
value: Text;
begin
IsolatedStorage.get(FTPServerHostLbl, value);
exit(value);
end;
procedure SetServerHost(value: Text)
begin
IsolatedStorage.set(FTPServerHostLbl, value);
end;
procedure GetServerPort():Integer
var
value: Integer;
TextValue: Text;
begin
IsolatedStorage.get(FTPServerPortLbl, TextValue);
if TextValue = '' then
value := 0
else
Evaluate(Value, TextValue);
exit(value);
end;
procedure SetServerPort(value: Integer)
var
TextValue: Text;
begin
TextValue := Format(value);
IsolatedStorage.set(FTPServerPortLbl, TextValue);
end;
procedure GetServerFingerPrint():text
var
value: text;
begin
if NOT IsolatedStorage.get(FTPServerFingerPrintLbl, value) then value := '';
exit(value);
end;
procedure SetServerFingerPrint(value: text)
begin
IsolatedStorage.set(FTPServerFingerPrintLbl, value);
end;
}
Here we see the common pattern of storing critical information in the Isolated Storage system.
Now we need a page for the settings. I created ARDFTPHandler.Page.al to hold and manage the settings.
namespace AardvarkLabs.FileParsingExamples;
using System.Utilities;
page 50012 ARD_FTPHandler
{
ApplicationArea = All;
Caption = 'FTP Handler';
PageType = Card;
SourceTable = "Integer";
DataCaptionExpression = 'FTP Server Settings';
UsageCategory = Administration;
layout
{
area(Content)
{
group(General)
{
Caption = 'Server Settings';
field(ServerHost; ServerHost)
{
Caption = 'Server Host';
ToolTip = 'The hostname or IP address of the FTP server.';
ApplicationArea = All;
trigger onvalidatE()
begin
ServerSettings.SetServerHost(ServerHost);
end;
}
field(ServerPort; ServerPort)
{
Caption = 'Server Port';
ToolTip = 'The port number of the FTP server.';
ApplicationArea = All;
trigger OnValidate()
begin
ServerSettings.SetServerPort(ServerPort);
end;
}
field(ServerFingerPrint; ServerFingerPrint)
{
ApplicationArea = All;
Caption = 'Server FingerPrint';
ToolTip = 'The SSH Fingerprint of the FTP server.';
MaskType = Concealed;
trigger OnValidate()
begin
ServerSettings.SetServerFingerPrint(ServerFingerPrint);
end;
}
field(UserName; UserName)
{
ApplicationArea = All;
Caption = 'Server User Name';
ToolTip = 'The username for the FTP server.';
trigger OnValidate()
begin
ServerSettings.SetServerUserName(UserName);
end;
}
field(ServerPassword; ServerPassword)
{
ApplicationArea = All;
Caption = 'Server Password';
ToolTip = 'The password for the FTP server.';
MaskType = Concealed;
trigger OnValidate()
begin
ServerSettings.SetServerPassword(ServerPassword);
end;
}
}
group(Files)
{
part(FileList; ARD_FTPFileList)
{
ApplicationArea = All;
}
}
}
}
var
ServerSettings: Codeunit ARD_SFTPServerSettings;
UserName: Text;
ServerHost: Text;
ServerPort: Integer;
ServerFingerPrint: text;
ServerPassword: text;
trigger OnOpenPage()
begin
//Load the current server settings from the Isolated Storage when opening the page.
ServerHost := ServerSettings.GetServerHost();
ServerPort := ServerSettings.GetServerPort();
ServerFingerPrint := ServerSettings.GetServerFingerPrint();
UserName := ServerSettings.GetServerUserName();
end;
}
This page handles the loading and saving of the FTP Settings. Note that the server fingerprint and password has the MaskType value set to Concealed to hide the password from people peeping. It would be better if this was a Secret Text, but the FTP CodeUnit doesn’t allow for Secret Text.
There is a Part in the page, which is where all the FTP handling actually happens.
The file list part is ARDFTPFileList.Page.al
namespace AardvarkLabs.FileParsingExamples;
using System.SFTPClient;
page 50013 ARD_FTPFileList
{
ApplicationArea = All;
Caption = 'FTP File List';
PageType = ListPart;
SourceTable = "SFTP Folder Content";
InsertAllowed = true;
layout
{
area(Content)
{
repeater(General)
{
field(Name; Rec.Name)
{
}
field("Full Name"; Rec."Full Name")
{
trigger OnDrillDown()
begin
if Rec."Is Directory" then begin
case Rec.Name of
'.': //return to the root
currentPath := '';
'..': //go up one level
currentPath := CopyStr(currentPath, 1, currentPath.lastindexof('/') - 1);
else //go down one level
currentPath := Rec."Full Name";
end;
//List the files at the new level
ListFTPFiles();
end else
DownloadFTPFile(Rec."Full Name"); //Download the file that was clicked on
end;
}
field(Length; Rec.Length)
{
}
field("Is Directory"; Rec."Is Directory")
{
}
field("Last Write Time"; Rec."Last Write Time")
{
}
}
group(Upload)
{
Caption = 'Upload File';
field(UploadFileName; UploadFileName)
{
ApplicationArea = All;
Caption = 'File Name';
ToolTip = 'The name of the file to be uploaded to the FTP server.';
trigger OnValidate()
begin
UploadFTPFile(UploadFileName);
end;
}
}
}
}
actions
{
area(Processing)
{
action(ListFiles)
{
ApplicationArea = All;
Caption = 'List Files';
ToolTip = 'Lists the files in the root directory of the FTP server.';
image = View;
trigger OnAction()
begin
ListFTPFiles();
end;
}
action(DeleteFile)
{
ApplicationArea = All;
Caption = 'Delete File';
ToolTip = 'Deletes a file called data.txt from the root directory of the FTP server.';
image = Delete;
Scope = Repeater;
trigger OnAction()
begin
if (NOT Rec."Is Directory") and (Rec."Full Name" <> '') then
if Confirm('Are you sure you want to delete ' + Rec.Name + '?', false) then
DeleteFTPFile(Rec."Full Name");
end;
}
}
}
var
ServerSettings: Codeunit ARD_SFTPServerSettings;
currentPath: Text;
UploadFileName: Text;
trigger OnOpenPage()
begin
currentPath := '';
end;
procedure ListFTPFiles()
var
TempFileList: Record "SFTP Folder Content" temporary;
SFTPClient: Codeunit "SFTP Client";
begin
Rec.DeleteAll();
//Setting up the client from the values in the Isolated Storage.
SFTPClient.AddFingerPrintSHA256(ServerSettings.GetServerFingerPrint());
SFTPClient.Initialize(ServerSettings.GetServerHost(), ServerSettings.GetServerPort(), ServerSettings.GetServerUserName(), ServerSettings.GetServerPassword());
//Disconnect when complete or if there is an error.
SFTPClient.ListFiles(currentPath, TempFileList);
//Insert the files from the temporary record into the page's record to display them in the list.
if TempFileList.FindSet() then
repeat
Rec := TempFileList;
Rec.Insert();
until TempFileList.Next() = 0
else
Message('No files found in the root directory of the FTP server.');
CurrPage.Update(false);
//Disconnect when complete or if there is an error.
SFTPClient.Disconnect();
end;
procedure UploadFTPFile(FileName: Text)
var
SFTPClient: Codeunit "SFTP Client";
InStream: InStream;
begin
if UploadIntoStream('', InStream) then begin
//Setting up the client from the values in the Isolated Storage.
SFTPClient.AddFingerPrintSHA256(ServerSettings.GetServerFingerPrint());
SFTPClient.Initialize(ServerSettings.GetServerHost(), ServerSettings.GetServerPort(), ServerSettings.GetServerUserName(), ServerSettings.GetServerPassword());
//Upload the file to the FTP server using the provided filename and filestream.
SFTPClient.PutFileStream(FileName, InStream);
//Disconnect when complete or if there is an error.
SFTPClient.Disconnect();
end else
Message('File upload cancelled.');
end;
procedure DownloadFTPFile(FullFileName: Text)
var
SFTPClient: Codeunit "SFTP Client";
InStream: InStream;
FileContent: TextBuilder;
CurrentText: Text;
begin
//Setting up the client from the values in the Isolated Storage.
SFTPClient.AddFingerPrintSHA256(ServerSettings.GetServerFingerPrint());
SFTPClient.Initialize(ServerSettings.GetServerHost(), ServerSettings.GetServerPort(), ServerSettings.GetServerUserName(), ServerSettings.GetServerPassword());
//Download the file from the FTP server into a filestream.
SFTPClient.GetFileAsStream(FullFileName, InStream);
//Disconnect when complete or if there is an error.
SFTPClient.Disconnect();
while InStream.EOS = false do
// Append each line of text to the TextBuilder
if InStream.ReadText(CurrentText) <> 0 then
FileContent.AppendLine(CurrentText);
Dialog.Message(FileContent.ToText());
end;
procedure DeleteFTPFile(FullFileName: Text)
var
SFTPClient: Codeunit "SFTP Client";
begin
//Setting up the client from the values in the Isolated Storage.
SFTPClient.AddFingerPrintSHA256(ServerSettings.GetServerFingerPrint());
SFTPClient.Initialize(ServerSettings.GetServerHost(), ServerSettings.GetServerPort(), ServerSettings.GetServerUserName(), ServerSettings.GetServerPassword());
//Delete the file from the FTP server using the provided filename.
SFTPClient.DeleteFile(FullFileName);
//Disconnect when complete or if there is an error.
SFTPClient.Disconnect();
end;
}
The FTP system only supports 4 commands. List Files, Upload File, Download File, and Delete File. Everything else has to be done as a series of actions based on these commands.
Each action follows the same pattern: Add the fingerprint to the SFTP Client, Initialize the client with Host URL, Port, Username, and Password. You then transact against the SFTP Server. Last step is to Disconnect.
Here it is in action:

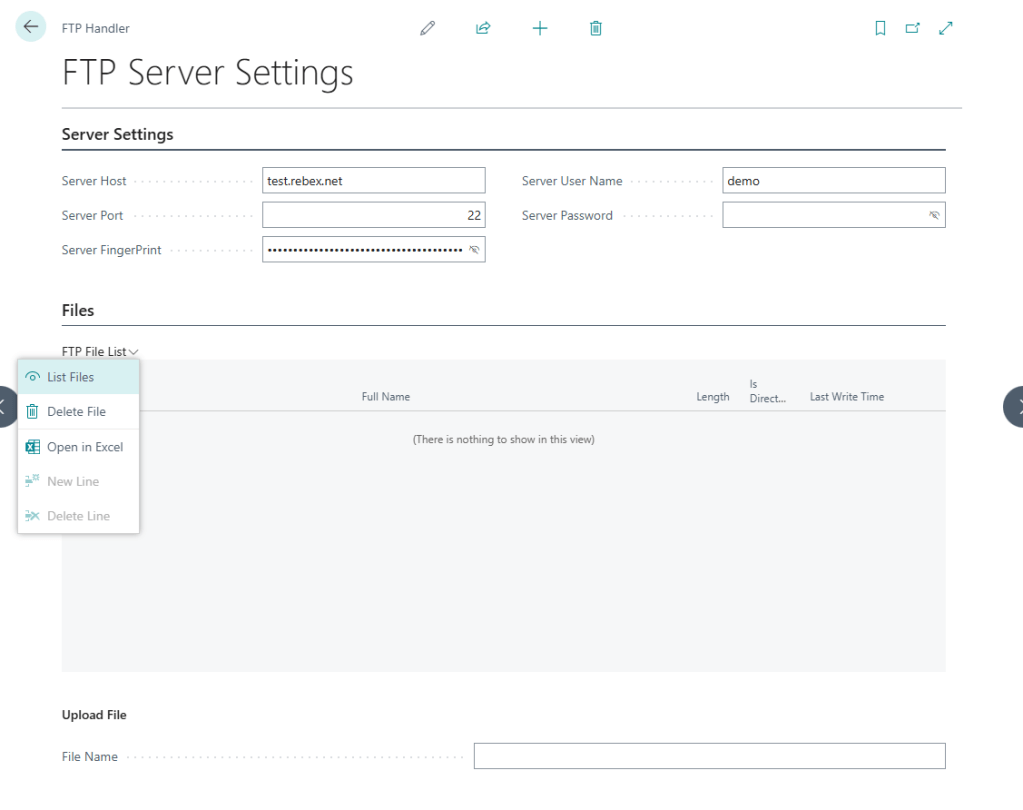

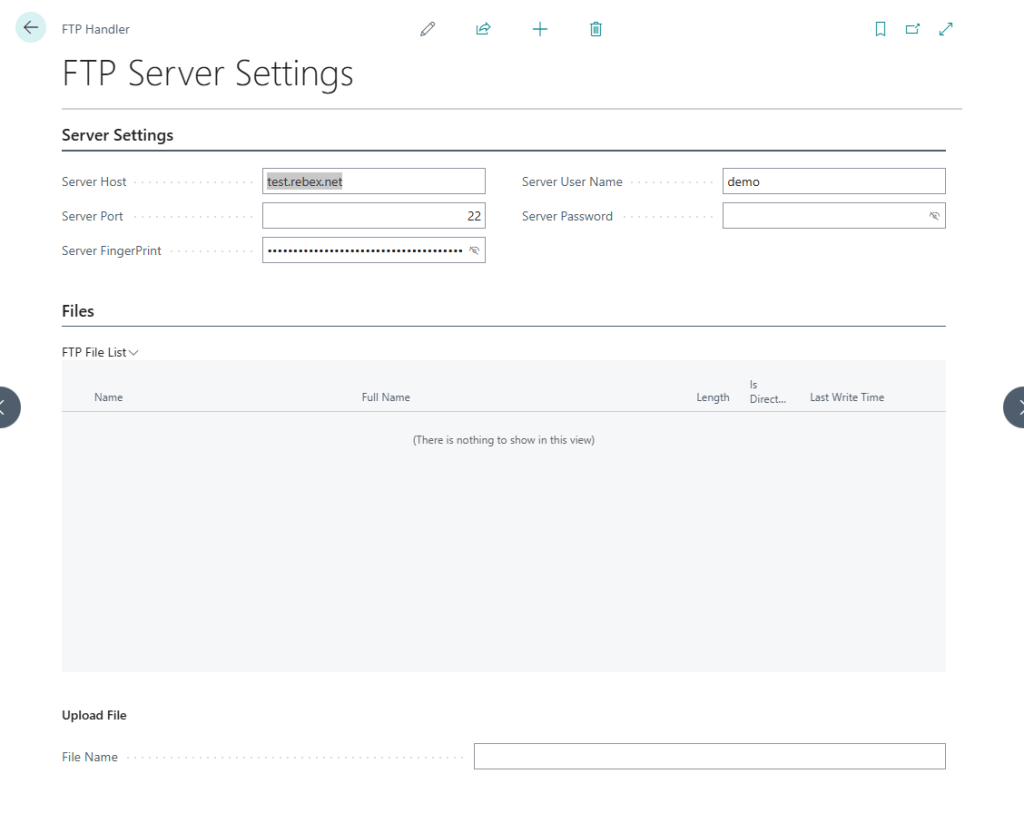

I’ve filled out the test FTP server settings. I can use the menu in the FTP File List part to list out the files.

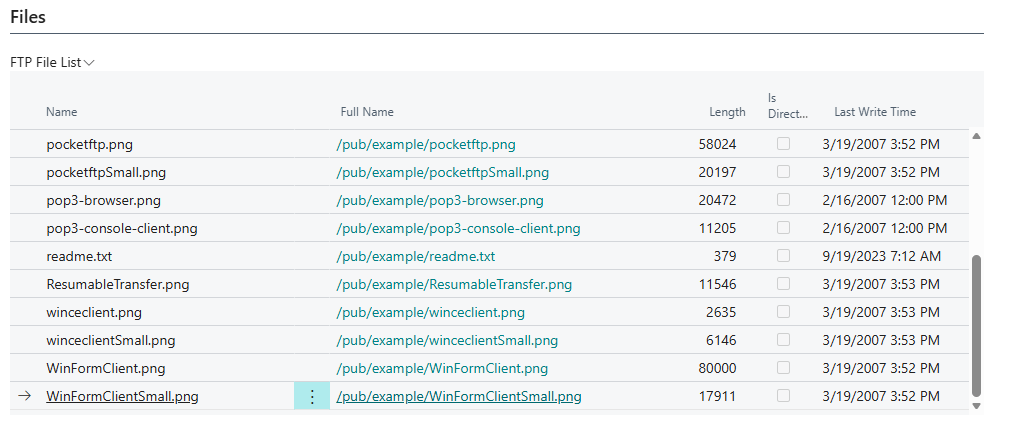

I can now navigate around the list part and work with the files in the server.
This simple example is all wired up to chat with your favorite FTP Server. Go ahead and give it a try, let me know if you have any questions in the comments section.
Microsoft provided example and further details here: BCApps/src/System Application/App/SFTP Client at main · microsoft/BCApps
As always, source code in AardvarkLabs GitHub.
